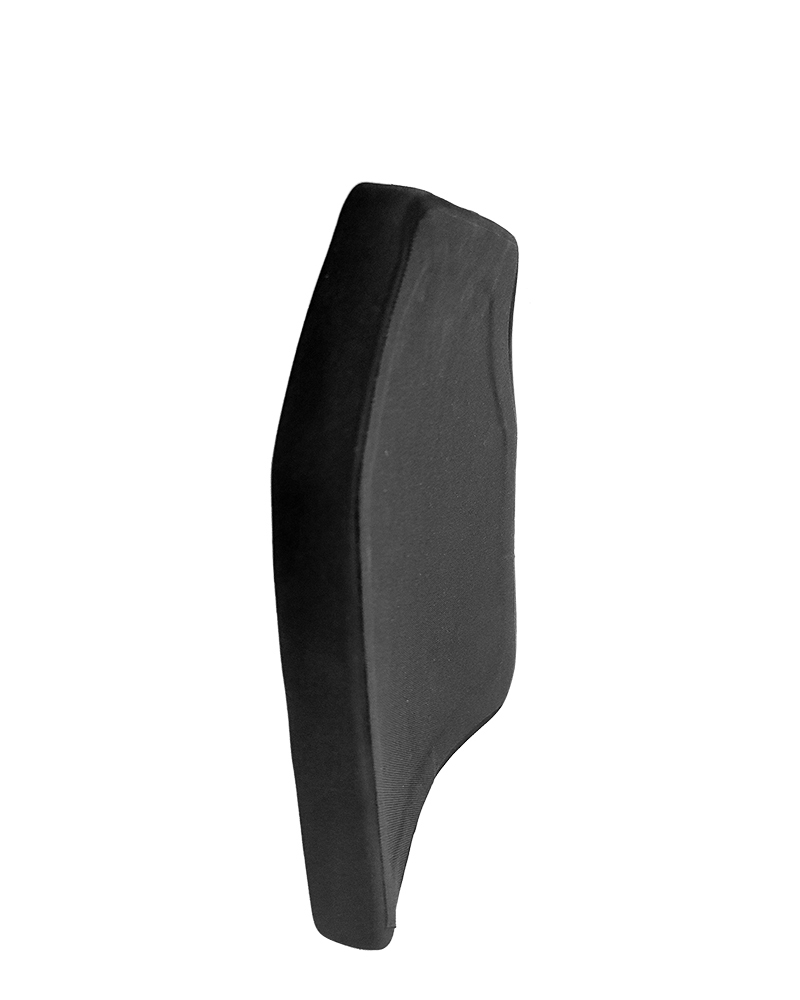

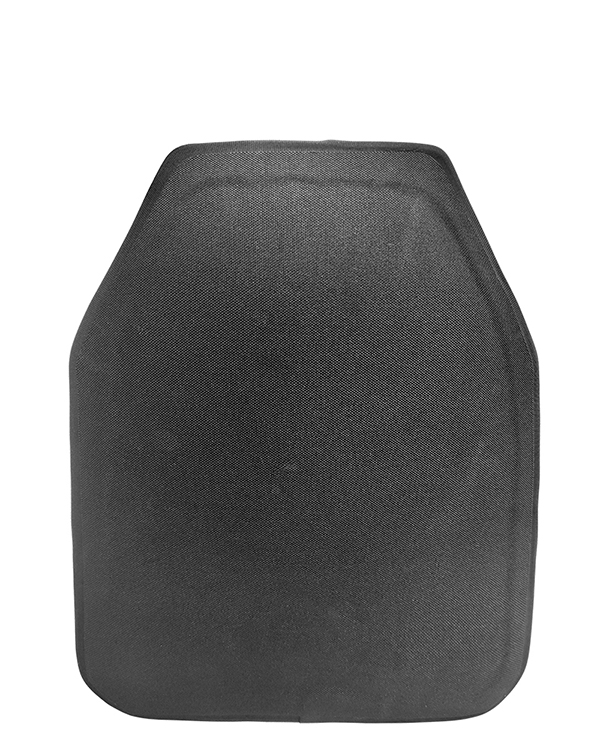

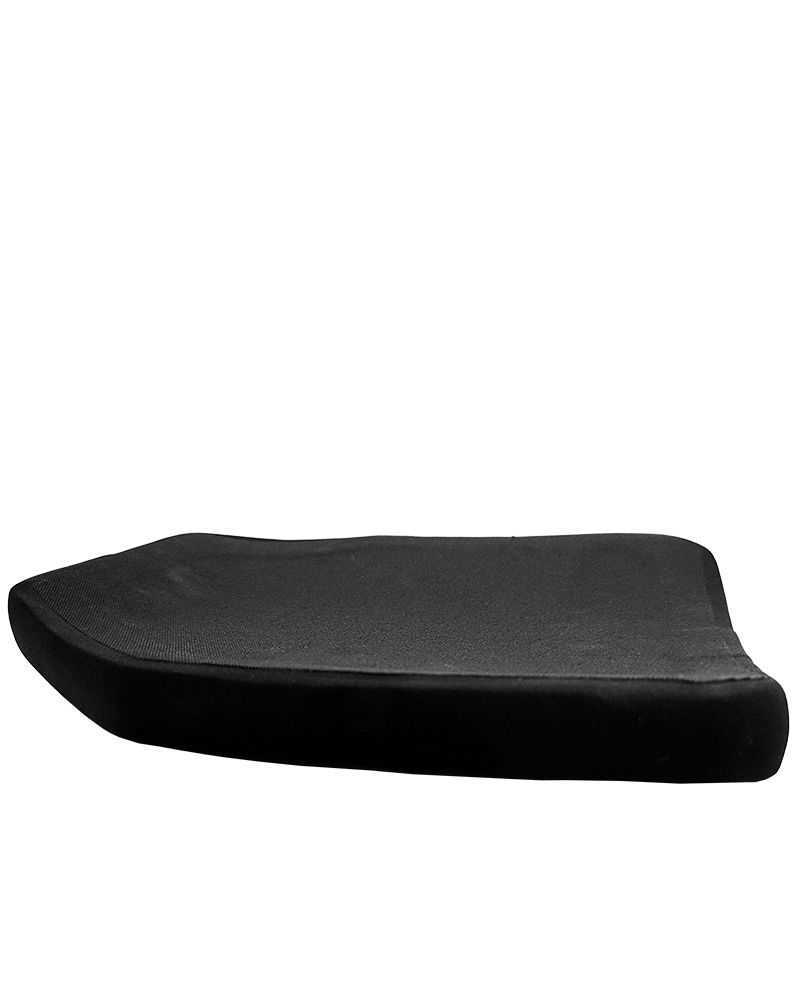

NIJ IV Stand Alone Ballistic Plate
|
Item |
Parameter |
Remark |
|
|
Production Name |
NIJ IV Stand Alone Ballistic Plate |
||
|
Model |
MS-4E250300SA |
||
|
Material |
Silicon carbide Ceramic+HPPE |
SiC |
|
|
Size |
10"(25.0cm)x12"(30.0cm)x0.94"(2.4cm) |
||
|
Cut Corner |
2.16"(5.5cm)x3.74"(9.5cm) |
||
|
Weight |
2.60kg(5.73 lbs) |
||
|
Curvature |
Multi Curve |
||
|
Out Covering |
600D Nylon fabric,Water resistent and flame retardant |
||
|
Protection Level |
NIJ0101.06 Level IV Stand Alone |
||
|
Shots per pcs |
1 Shots |
||
|
Shooting Distance |
15m |
||
|
Speed |
3m Away from the Muzzle |
||
|
Bullet Stop |
7.62x63 M2 AP(.30 Cal.); 7.62x54R API B32 |
||
|
Bullet velocity |
8789m/s |
||
|
BFS |
44mm |
||
|
Warranty |
7years |
||
|
NOTES |
|||
|
Attention |
There are +/- 50g absolute error on weight and +/- 3mm absolute error on dimension; Use temperature should not exceed 70 ; Visual checking when insert everytimes The panel must be stored in a dry room with constant room temperature; Wipe with damp cloth; DO NOT BEND or ALTER. |
||
