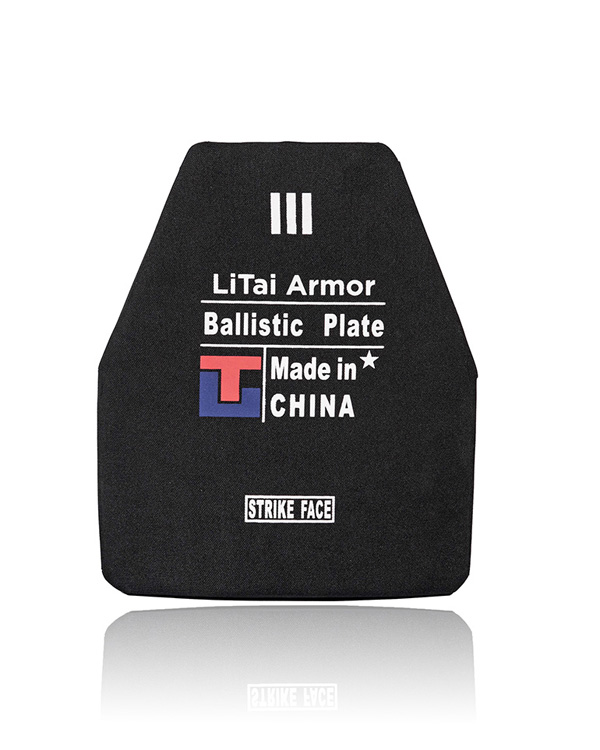

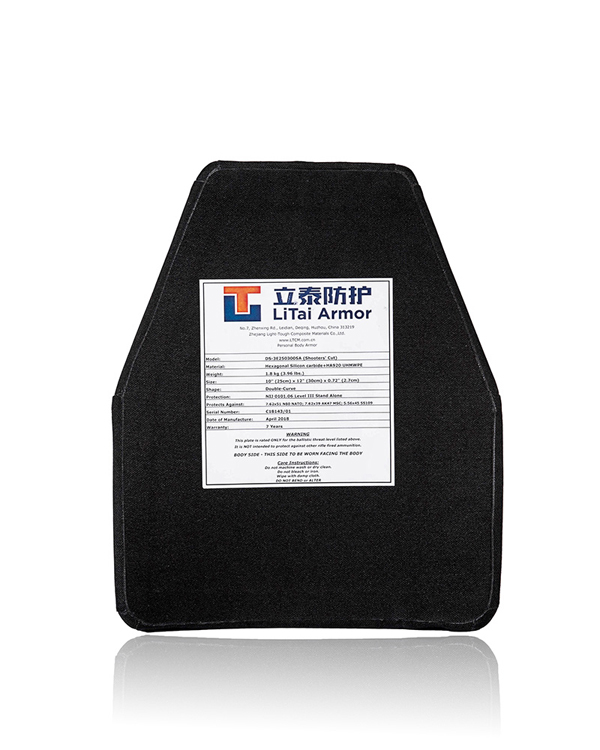

NIJ III Stand Alone Ballistic Plate
|
Item |
Parameter |
Remark |
|
|
Production Name |
NIJ III Stand Alone Ballistic Plate |
|
|
|
Model |
DA-3E250300SA |
SHOOTERS |
|
|
Material |
Alumina+UHMWPE (CH221 / LTH3-M1) |
AL2O3 |
|
|
Size |
10"(25cm)x12"(30cm)x0.98"(2.5cm) |
|
|
|
Cut Corner |
2.4"(6cm)x6"(15cm) |
|
|
|
Weight |
2.10kg(4.63lbs) |
|
|
|
Curvature |
Multi Curve |
|
|
|
Out Covering |
600D oxford fabric,Water resistent and flame retardant |
|
|
|
Protection Level |
NIJ0101.06 Level III Stand Alone |
|
|
|
Shots per pcs |
6 Shots |
|
|
|
Shooting Distance |
15m |
|
|
|
Speed |
3m Away from the Muzzle |
|
|
|
Bullet Stop |
7.62x51 M80 NATO;7.62x39 AK47 MSC;5.56x45 SS109 |
|
|
|
Bullet velocity |
8479.1m/s;7309.1m/s;970 15m/s |
|
|
|
BFS |
44mm |
|
|
|
Warranty |
7years |
|
|
|
NOTES |
|||
|
Attention |
There are +/- 50g absolute error on weight and +/- 3mm absolute error on dimension; Use temperature should not exceed 70 ;
Visual checking when insert everytimes The panel must be stored in a dry room with Wipe with damp cloth; DO NOT BEND or ALTER |
||
