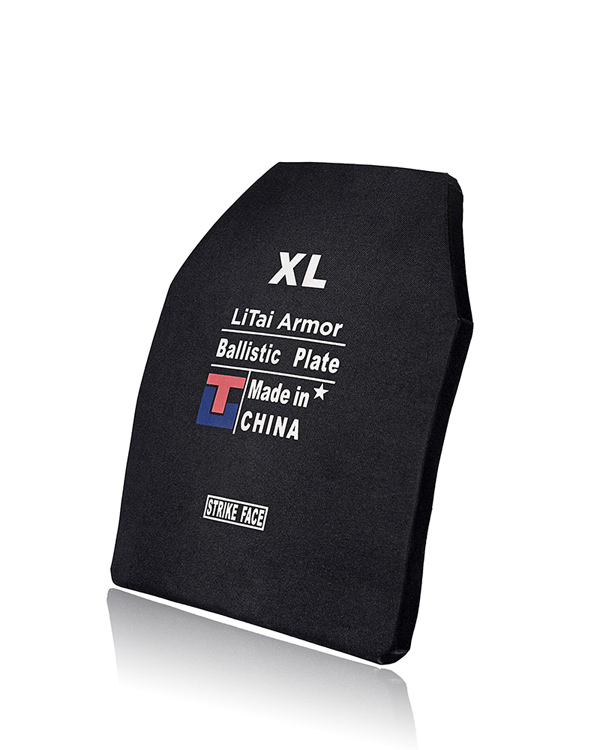

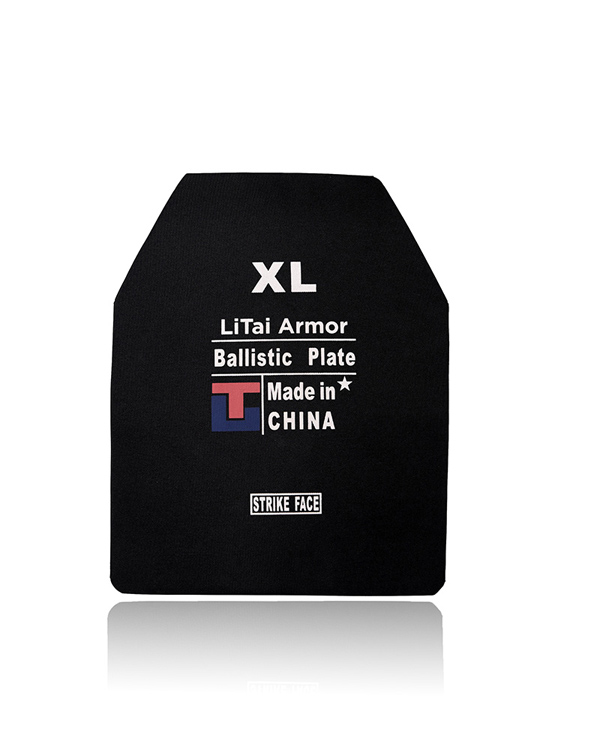

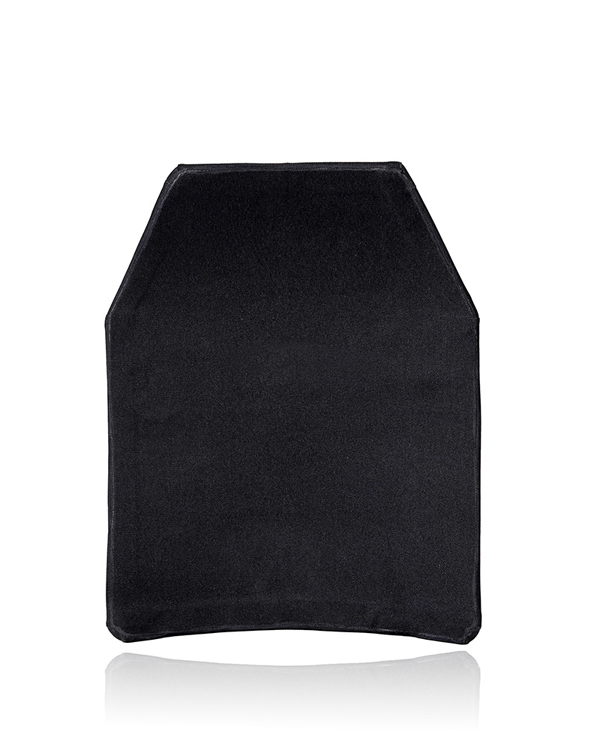

ESAPI - HARD ARMOR PLATE
|
Item |
Parameter |
Remark |
|
|
Production Name |
NIJ IV ICW Ballistic Plate |
|
|
|
Model |
MS-4E285361IIIA (ESAPI Size XL) |
S/E |
|
|
Material |
Monolithic Silicon Carbide+UHMWPE (CH221) |
SiC |
|
|
Size |
11.22" (28.5cm) x 14.21" (36.1cm) x 0.78" (2.05cm) |
|
|
|
Ceramic Coverage |
11.02"(28.0cm)x14.01"(35.6cm) |
||
|
Cut Corner |
2.16"(5.5cm)x4.33"(11.0cm) |
Monolithic |
|
|
Weight |
3.45 kg (7.6 lbs) |
|
|
|
Curvature |
Multi Curve |
ESAPI |
|
|
Out Covering |
600D oxford fabric, Water resistent and flame retardant |
|
|
|
Protection Level |
NIJ0101.06 Level IV ICW IIIA vest |
|
|
|
Shots per pcs |
ONE Shot |
|
|
|
Shooting Distance |
15m |
|
|
|
Speed |
3m Away from the Muzzle |
|
|
|
Bullet Stop |
7.62x54 R API B32; 7.62x63 M2 AP |
|
|
|
Bullet velocity |
8609.1m/s; 8789.1m/s |
|
|
|
BFS |
44mm |
|
|
|
Warranty |
7years |
|
|
|
NOTES |
|||
|
Attention |
There are +/- 150g absolute error on weight and +/- 3mm absolute error on dimension; Use temperature should not exceed 70 ; Visual checking when insert everytimes The panel must be stored in a dry room with constant room temperature; Wipe with damp cloth; DO NOT BEND or ALTER. |
||
