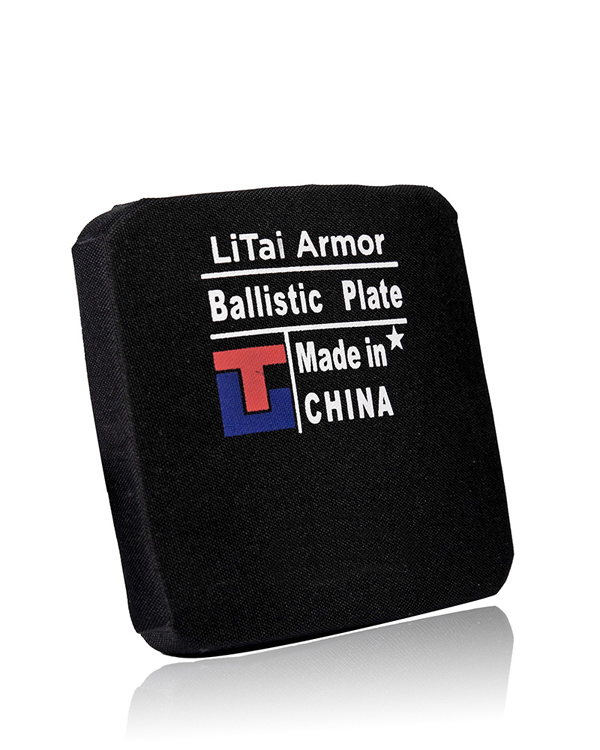

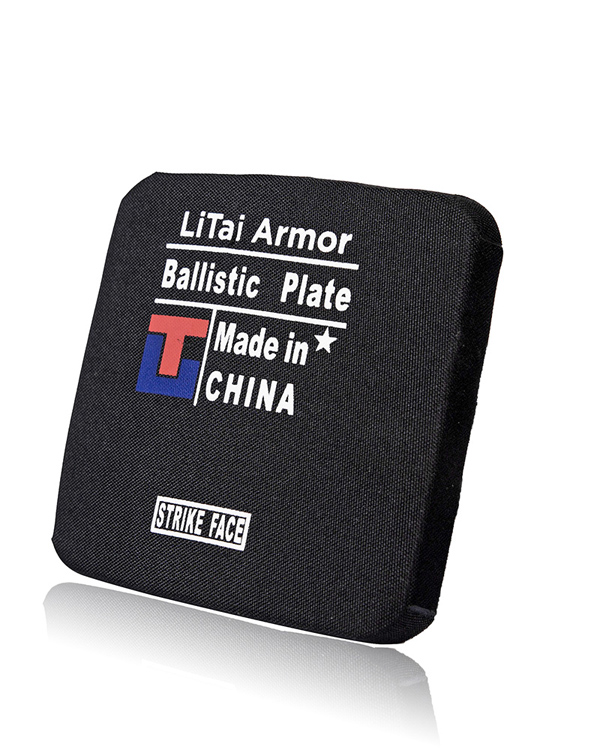

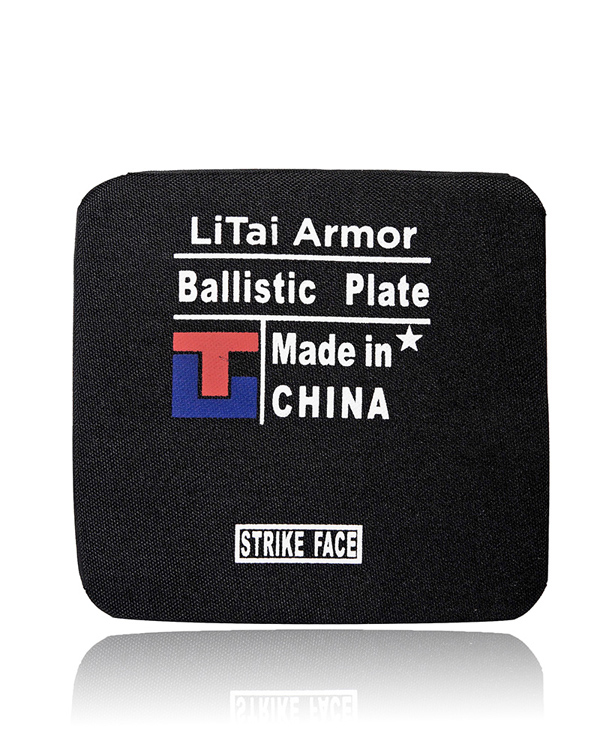

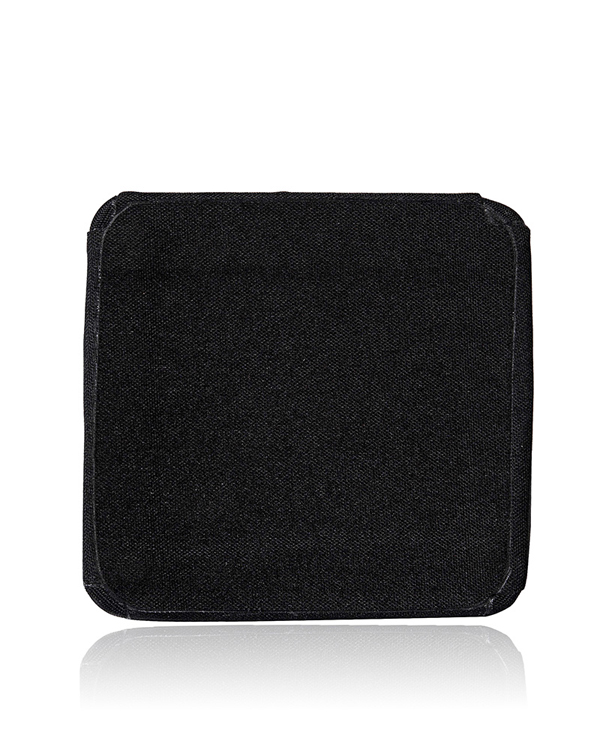

NIJ IV ICW IIIA VEST Ballistic Plate
|
Item |
Parameter |
Remark |
|
|
Production Name |
NIJ IV ICW IIIA VEST Ballistic Plate |
||
|
Model |
S-4T150150IIIA |
FULL |
|
|
Material |
Silicon Carbide + UHMWPE(HA616) |
||
|
Size |
6"(15cm)x6"(15cm)x0.79"(2.0cm) |
||
|
Ceramic Coverage |
6"(15cm)x6"(15cm) |
|
|
|
Cut Corner |
R10 |
||
|
Weight |
0.75kg (1.65 lbs) |
||
|
Curvature |
Single Curve |
||
|
Out Covering |
600D oxford fabric,Water resistent and flame retardant |
||
|
Protection Level |
NIJ0101.06 Level IV ICW IIIA vest |
ICW |
|
|
Shots per pcs |
ONE Shot |
||
|
Shooting Distance |
15m |
||
|
Speed |
3m Away from the Muzzle |
||
|
Bullet Stop |
7.62x63 M2 AP(.30 Cal.); 7.62x54R API B32 |
||
|
Bullet velocity |
8789m/s |
||
|
BFS |
44mm |
||
|
Warranty |
7years |
||
|
NOTES |
|||
|
Attention |
There are +/- 50g absolute error on weight and +/- 3mm absolute error on dimension; Use temperature should not exceed 70 ; No falls during use; Visual checking when insert everytimes The panel must be stored in a dry room with constant room temperature; Wipe with damp cloth; DO NOT BEND or ALTER. |
||
